| Hashrate | Power | Algorithm |
|---|---|---|
| 48 Th/s | 2200 W | Blake256R14 |

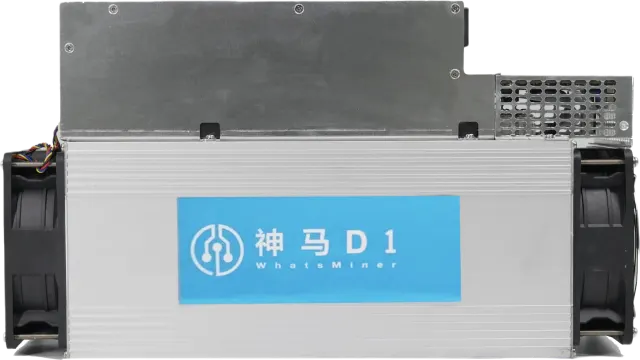

MicroBT WhatsMiner D1 is an ASIC dedicated to the Blake256R14-dcr algorithm, designed for Decred (DCR) mining and equipped with air cooling. This model offers a hashrate of 48 TH/s and a power consumption of 2200 watts. It has an approximate energy efficiency of 0.046 J/GH and is intended exclusively for intensive mining.
| Manufacturer | MicroBT |
| Model | Whatsminer D1 |
| Also known as | Whatsminer DCR 48Th/s, D10V1 |
| Release | Nov 2018 |
| Size | 130 x 220 x 390mm |
| Weight | 8500g |
| Chip boards | 3 |
| Chip name | FinFET |
| Chip size | 16nm |
| Chip count | 315 |
| Noise level | 75dB |
| Fan(s) | 2 |
| Power | 2200W |
| Voltage | 12V |
| Interface | Ethernet |
| Temperature | 5 - 45 °C |
| Humidity | null - 45 % |
| Daily | Monthly | Yearly | |
|---|---|---|---|
| Income (DCR) |
$1.57 0.092814 DCR |
$47.25 2.784422 DCR |
$574.82 33.877134 DCR |
| Electricity | -$5.28 | -$158.40 | -$1,927.20 |
| Profit | -$3.71 | -$111.15 | -$1,352.38 |
